روش Wet Air Oxidation یکی از روش های اکسیداسیون پیشرفته برای کاهش غلظت ترکیبات آلی در فاضلاب های صنعتی، پتروشیمی، ترکیبات سمی و غیر قابل تجزیه بیولوژیکی و غیره است. این روش متداول ترین روش جهت تصفیه کاستیک مستعمل می باشد که شرکت های Linde ، Total ، Siemens ، TOYO و Aquatech هر کدام لایسنس خاص خود را در این زمینه ایجاد کرده اند و بسیاری از شرکتهای دیگر نیز در این زمینه به طور مستقل و یا با الهام گیری از زوش مورد استفاده این شرکتها دست به ابداع روشها و تجهیزات خاص این زمینه زده اند. در ایران نیز این روش در چندین پترویمی الفینی اجرا شده است.
اکسیداسیون مرطوب نوعی تصفیه آب گرمابی است. این روش، اکسیداسیون اجزای حل شده یا معلق در آب با استفاده از اکسیژن به عنوان اکسید کننده است. در هنگام استفاده از هوا به آن “اکسیداسیون هوای مرطوب” (WAO) گفته می شود. واکنشهای اکسیداسیون در آب گرم شده در دمای بالاتر از دمای جوش طبیعی (100 درجه سانتیگراد) رخ می دهد، اما در زیر نقطه بحرانی (374 درجه سانتیگراد) قرار دارد.
برای جلوگیری از تبخیر بیش از حد آب سیستم باید تحت فشار نگه داشته شود. این کار برای کنترل مصرف انرژی به دلیل گرمای نهان بخار انجام می شود. همچنین این کار انجام می شود زیرا آب مایع برای بروز اکثر واکنش های اکسیداسیون ضروری است. ترکیبات در شرایط اکسیداسیون مرطوب اکسیده می شوند که در شرایط خشک و در همان درجه حرارت و فشار اکسیده نمی شوند.
اکسیداسیون مرطوب حدود 60 سال به صورت تجاری استفاده شده است. در دو دهه گذشته ، روند WAO به طور گسترده ای در تصفیه فاضلاب رنگی مورد مطالعه و استفاده قرار گرفت. در مقایسه با WAO معمولی ، فرآیندهای کاتالیزوری WAO راندمان بالاتری دارند و از شرایط واکنش متوسط استفاده می کنند. کاتالیزورها شامل انواع همگن و ناهمگن بودند. نکات کلیدی که باید حل شود ، بازیافت کاتالیزورهای همگن و پایداری بهتر کاتالیزورهای ناهمگن است.
سیستم های تجاری به طور معمول از یک راکتور ستون حباب استفاده می کنند ، جایی که هوا از طریق ستونی عمودی که مایع پر از فاضلاب گرم و تحت فشار است حباب می شود. فاضلاب تازه وارد قسمت پایین ستون می شود و فاضلاب اکسیده شده از قسمت فوقانی خارج می شود. گرمای آزاد شده هنگام اکسیداسیون برای حفظ دمای کارایی استفاده می شود.
WAO یک واکنش فاز مایع با استفاده از اکسیژن محلول در آب برای اکسیداسیون آلاینده های فاضلاب است. اکسیژن محلول معمولاً با استفاده از هوای تحت فشار تأمین می شود ، اما از اکسیژن خالص نیز می توان استفاده کرد. واکنش اکسیداسیون به طور کلی در دماهای متوسط از 150 تا 320 درجه سانتیگراد و در فشارهای 10 تا 220 بار اتفاق می افتد. این فرآیند آلاینده های آلی را به دی اکسید کربن ، آب و اسیدهای آلی با زنجیره کوتاه تجزیه پذیر قابل تبدیل تبدیل می کند. اجزای معدنی مانند سولفیدها و سیانیدها به ترکیبات معدنی غیر واکنش پذیر تبدیل می شوند.
در واکنش WAO ، مولکولهای آلی پیچیده ، از جمله ترکیبات نسوز بیولوژیکی ، به ترکیبات آلی ساده تر یا به حالت کانی کامل تبدیل می شوند (CO2 ، NH3 ، Cl، ، SO4 SO2 ، PO4−3). ترکیبات آلی ساده مانند اسیدهای کربوکسیلیک با وزن مولکولی کم و محصولات واکنش معدنی ممکن است در پساب WAO وجود داشته باشد. به همین دلیل ، پساب WAO به طور کلی قبل از تخلیه نیاز به تصفیه ثانویه دارد. پساب WAO معمولاً به راحتی تجزیه پذیر می شوند و مقادیر بالایی را برای نسبت های BOD: COD نشان می دهند. تکنیک های استاندارد تصفیه ثانویه مانند استفاده از لجن فعال به طور معمول با WAO برای تصفیه کامل استفاده می شود.
کاتالیزور را می توان در سیستم WAO برای بهبود تصفیه و دستیابی به تخریب بالاتر COD استفاده کرد. همچنین می توان از کاتالیزورهای ناهمگن و همگن استفاده کرد(Heterogeneous and homogeneous catalysts). کاتالیزورهای ناهمگن بر اساس فلزات گرانبها هستند که روی یک بستر پایدار قرار دارند. کاتالیزورهای همگن فلزات واسط هستند. چندین فرآیند ، مانند Ciba-Geigy ، LOPROX و ATHOS از یک کاتالیزور همگن استفاده می کنند. کاتالیزورهای فلزی مخلوط ، مانند Ce / Mn ، Co / Ce ، Ag / Ce ، همچنین در بهبود درمان به دست آمده در یک سیستم WAO مؤثر هستند.
نوع خاصی از فرآیند اکسیداسیون مرطوب سیستم موسوم به “فرآیند VerTech” بود. سیستمی از این نوع در آپلدورن ، هلند بین سالهای 1994 و 2004 عمل می کرد. این سیستم در یک مخزن تحت فشار زیر زمین نصب شده بود (همچنین به آن یک مخزن فشار گرانشی یا GPV گفته می شود). این فشار با تغذیه مواد به یک راکتور با عمق 1200 متر (3 هزار و 900 فوت) تأمین می شد. راکتور شافت عمیق نیز به عنوان مبدل حرارتی عمل می کرد ، بنابراین هیچ گرمایش از قبل لازم نبود. دمای عملیاتی در حدود 270 درجه سانتیگراد با فشار حدود 100 بار (1500 psi) بود.
انواع روشهای تجاری WAO
این روش مطابق آنچه که توضیح داده شد با استفاده دما و فشار عمل می کند و مطابق جدول زیر به سه دسته تقسیم می شود.
|Classification||Temperature(Pressure)||Treatment of Compounds|
|Low||110-150 °C(2-10 bar)||Reactive Sulfides|
|Mid||200-220 °C(20-45 bar)||Sulfides, Mercaptans|
|High||240-260 °C(45-100 bar)||Naphthenic and Cresylic Acids, Sulfides, Mercaptans|
روشCatalytic Wet Air Oxidation -CWAO
این فرایند ، که بیش از بیست سال برای گازرسانی زغال سنگ و کاربردهای نفت و گاز ایجاد شده است ، پیشرفت قابل توجهی نسبت به فن آوری های معمول اکسیداسیون هوای مرطوب است ، که شامل استفاده از کاتالیزورهای ناهمگن اختصاصی است. هوا به عنوان اکسیدان با پساب مخلوط می شود و در دمای و فشارهای بالا از یک کاتالیزور عبور می کند.
CWAO اجزای آلی محلول و معلق را به دی اکسید کربن و آب تبدیل می کند. اجزای معدنی اکسیده شده مانند آمونیاک و سیانیدها نیز به آسانی درمان می شوند. کاهش تقاضای اکسیژن شیمیایی تا 99.8٪ می تواند حاصل شود.
CWAO برای کار بدون مراقبت طراحی شده است و نیازمند یک فضای کوچک است.
واحد های CWAO اکنون برای کاربردهای جدید ساخت و سازهای نفت و گاز و نیروگاه ها انتخاب می شوند.
کاهش آلودگی بیشتر از 99.8٪ با استفاده از فرآیند CWAO ، در مقایسه با فرآیندهای پیشرو معمولی WAO ، که فقط به کاهش آلاینده ها بین 75-90٪ می رسند. CWAO اجازه می دهد تا محصول تصفیه شده مستقیماً وارد محیط شود یا بازیافت شود.
کاتالیزورهای متناسب و طراحی سیستم CWAO منجر به عملکرد در دما و فشاربه طور قابل ملاحظه ای پایین تر از فرآیندهای اکسیداسیون هوای مرطوب معمولی می شوند.
Thermal wet oxidation processes
Thermal wet oxidation processes use high-temperature and high-pressure air or oxygen as oxidant. Wet air oxidation (WAO) refers to a process of oxidizing wastewaters, the water-containing liquid wastes under pressure with air or oxygen, and at high temperature (>120°C). It is a good option for treating the high-organic content PWWs which can originate from fine chemical and pharmaceutical industries. The chemistry of wet air oxidation involves chain reactions of radicals formed from organic and inorganic compounds present in the reaction mixture. In this hydrothermal process, the organic pollutants are converted into easily biodegradable substances or completely mineralized and the inorganic compounds are converted into their form with higher oxidation value, such as sulfides into sulfates.
A typical condition for wet air oxidation ranges from 180°C and pressure of 2 MPa to 315°C and 20 MPa pressure.
2.1.1. Industrial application of wet air oxidation
WAO technologies have been commercialized around 60 years ago. Applying different temperatures, one can mention three different oxidation categories, namely: low-temperature oxidation, medium temperature oxidation, and high-temperature oxidation.
Commercial application of low-temperature oxidation (100°C-200°C) involves low-pressure thermal conditioning (LPO) of activated sludge and the treatment of low-strength sulfidic spent caustic. The most prevalent WAO applications are for ethylene plants spent caustic and refinery spent caustic.
The ethylene plant spent caustic is traditionally oxidized at low temperatures in the range of 120°C-220°C; the main purpose is to destroy the odorous sulfide content of this effluent. The refinery spent caustic WAO application operates at 240°C-260°C that already fits the medium temperature category, as well as the WAO of some organic wastes. Other industrial wastes treated by low-temperature oxidation include cyanide and phosphorous wastes, as well as non-chlorinated pesticides. High-temperature oxidation 260°C-320°C is used for refinery spent caustic, sludge destruction, and most WAO treated industrial wastewaters. Most organic industrial wastes are oxidized in this temperature range, including pharmaceutical wastes as well as pesticides, solvents, and the complete destruction of liquid wastes of pulp and paper production and other organic sludges.
2.1.2. Zimpro® wet air oxidation and related processes
The history of WAO started almost about 60 years ago, when Zimmermann observed that he could dispose of pulp mill liquors using air at high pressure leading to the oxidation of organic compounds dissolved or suspended in water at relatively low temperatures in the presence of oxygen .
They took spent pulping liquor from a local paper mill to produce artificial vanilla flavoring (vanillin) by partial oxidation of ligno-sulfonic acids. They perfected the wet air oxidation process (or the “Zimmermann Process” as it was known), and expanded it to other applications, including wastewater treatment. The company, developed and installed these wet oxidation plants, had a diversified history as it was established by Sterling Drug Inc. as “Zimpro” at Rothschild in 1961, building the engineering and research center along the Wisconsin River. After a long expansion period, with new developments and acquisitions, Zimpro was purchased by USFilter in 1996. In April 1999, Paris-based Vivendi announced the acquisition of USFilter. Siemens bought USFilter in May 2004. Presently, it is owned by Siemens Co. under the name “Siemens Water Technologies.”
Since the beginning, this process (Zimpro) had been mainly used for sewage sludge treatment, but by the early 1970s, it was applied to regenerate spent powdered active carbon from wastewater treatment processes. During the 1980s, WAO began to be more useful as an industrial waste treatment technology. Zimpro Products installed the first wet oxidation unit in 1982 to treat the ethylene plant spent caustic. The next year, they installed and operated a wet oxidation system in California for the treatment and detoxification of hazardous wastes. In 1992, Zimpro installed a wet oxidation system at Sterling Organics in Dudley, Northumberland, UK, for pharmaceutical wastewater treatment. Currently, about 200 full-scale WAO plants are in operation for the treatment of a variety of effluent streams (municipal sludge, night soil, carbon regeneration, acrylonitrile process effluent, metallurgical coking, ethylene production spent caustic, paper filler, industrial activated sludge, pulping liquor, warfare chemicals, paper mill sludge, explosives, monosodium glutamate production, polysulfide rubber, textile sludge, chrome tannery waste, petroleum refining spent caustic, miscellaneous industrial sludges, nuclear reprocessing wastes) [2, 3]. In 2009, 2011, and 2012, Siemens contracted with Sinopec to build several WAO units in PR China for the disposal of spent caustic from ethylene plants and refineries.
The typical wet oxidation system (Figure 1) is a continuous process using a rotary compressor and pump to compress the air (or oxygen) and feed liquid stream to the required operating pressure. Heat exchangers serve to recover energy from the reactor effluent and use it to preheat the feed/air mixture entering the reactor. Auxiliary energy, usually steam, is necessary for startup and can provide trim heat if required. The residence time in the reactor vessel is several hours at a temperature that enables the oxidation reactions to proceed in some cases toward total mineralization. The reactor is a bubble column; it is coupled after the heat exchanger with a separator for the separation of the affluent and the off-gases. Since the oxidation reactions are exothermic, sufficient energy may be released in the reactor to allow the wet oxidation system to operate without any additional heat input at or above COD > ~10000 mg/L.
The typical reactions during WAO:

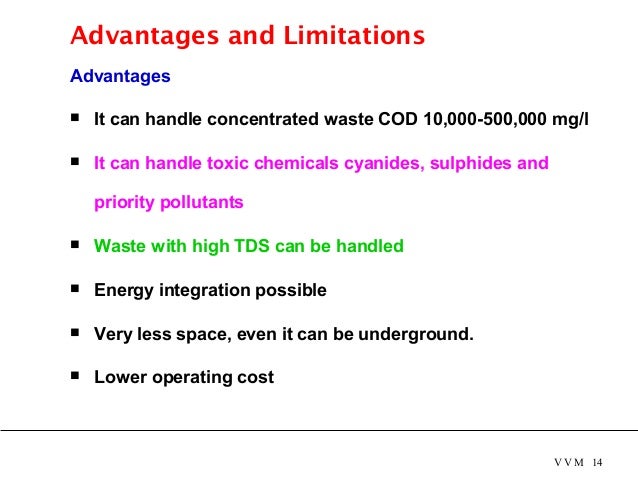

The oxidation reactions occur at temperatures of 150°C to 320°C and at pressures from 10 bar to 220 bar. The required operating temperature is determined by the treatment objectives. Higher temperatures require higher pressure to maintain a liquid phase in the system. Typical industrial applications for the WAO process have a feed flow rate of 1 m3/h to 50 m3/h per unit, with a chemical oxygen demand (COD) from 10,000 mg/L to 150,000 mg/L (higher COD with dilution).
During the decades of process development, huge amounts of data were collected and published about the oxidation properties of individual compounds, different process wastewaters, and sludges. In WAO of ethylene spent caustic, the conversion of sulfide is nearly 100% at 200°C for 60 minutes. The high conversion of the polluting compounds in refinery spent caustic needs a higher temperature of oxidation (260°C), residuals from pesticide and herbicide production need even higher (280°C). This is associated obviously with higher total pressure because of the increased vapor pressure of water and other volatiles.
A good instance is, for illustrating the technical details and problems of WAO, the oxidation of ethylene plant spent caustic, which is one of the best-elaborated technology among WAO processes. Such spent caustic liquor contains as major components the compounds listed in Table 1. The sulfur-containing compounds are oxidized to sulfate, being present in the basic solution as sodium sulfate, the organic components are oxidized primarily to carboxylic acids, such as acetic, oxalic, formic, and propionic acid. At 200°C and 28 bar pressure, only the partial oxidation of organic compounds occurs, as the forming carboxylic acids are well biodegradable .
|Soluble oil||50-150 ppm|
WAO reliability can be hampered by off-spec feed, which is affected by the upstream processing and handling of the spent caustic. The feed of the WAO plant for treating ethylene plant spent caustic contains some reactive organic compounds (called “red oil,” main components are primarily aldehydes that form high molecular weight materials through the so-called aldol condensation reaction) that cause fouling not only in the ethylene compressor and the separation equipment but in the heat exchanger in front of the oxidation reactor serving for the preheating of the caustic feed and cooling of the effluent. The fouling is even worse in the presence of iron that usually forms an insoluble scale, which has to be removed by chemical and/or mechanical treatment. Chloride is dangerous because of corrosion, in spite of the use of special alloys in the WAO equipment.
A special process is the so-called VerTech oxidation of sludges. This applies an underground installation, consisting of concentric tubes as heat exchangers going down to 1200 m depth to an oxidation vessel. Due to the depth of the vessel, the bottom pressure in the reactor is above 100 bar at 275°C without the need for high-pressure pumps at the surface. The building of the installation required drilling and casing technology developed by the gas and oil production industry. The operation of the system required a frequent descaling operation with nitric acid in order to preserve the efficiency of heat exchange in the concentric tubes. The output of this plant was 80 tons of sludge per day .
2.1.3. Kinetic mechanism of WAO
WAO of organic pollutants is generally described by a free-radical chain reaction mechanism in which the induction period to generate a minimum radical concentration is of great significance [6-9]. In the most detailed studied reaction in WAO, in the oxidation of phenol water solution during the induction period, practically no change was observed in phenol concentration. Once the critical concentration of free radical is reached, the fast reaction takes place (propagation step) when almost all phenol is oxidized. It has been found that the induction period length depends on oxygen concentration, temperature, type of organic compound, and if applied on the catalyst concentration [2, 10-13]. The pH also has an influence on the induction period that actually is shorter for pH values of about 4, and is increasing with the increase in pH .
In wet oxidation, the reaction chains are thermally initiated :
In the mechanism, R is an organic molecule present in the reaction mixture. In addition to the organic radicals several inorganic radicals participate in the degradation such as H, HO, and HO2/O2–. Among these radicals HO is the most reactive, it reacts with aromatic molecules (Ph=phenol) in radical addition reaction with practically diffusion-limited rate coefficient at all temperatures up to the supercritical value .
The hydroxycyclohexadienyl radical formed in Reaction (7) from phenol is also highly sensitive to oxygen.
In all real PWW and in the reaction mixtures of wet oxidation in stainless steel autoclaves, Fe ions are present with measurable concentration [17-19]. These ions and other transition metal ions present to accelerate the decomposition of peroxide to HO radicals in Fenton-type processes. The steady-state (propagation step) is then followed by the third step (termination step) characterized by a slow oxidation rate.
The first step is the chain initiation, in which free radicals (R, OH, HO2) are produced by dissociation (1) and the bimolecular reaction of dissolved oxygen with the organic compound (2), which is found to be very slow at low temperatures. When the free radical R is formed, it can readily react with molecular oxygen to give peroxoradical (ROO) (3). The other reaction is the formation of hydrogen peroxide, which decomposes with metal catalysis to OH radicals (6). Finally the peroxo radical gives with the parent compound a free radical and hydroperoxide (4). The OH radicals oxidize the parent compound into a free radical again (5).
In the mechanism, the organic parent compound (RH) can react thus with molecular oxygen, the organic peroxyl (ROO ) (5), hydroxyl (OH ) (6) and hydroperoxyl (HO2 ) (3) radicals [20, 21].
Intermediates formation is of great importance in WAO and has been reviewed by Devlin and Harris for the oxidation of aqueous phenol with dissolved oxygen . The conclusion was that, at elevated temperatures, oxygen is capable of three different oxidation reactions with the organic: (i) introducing an oxygen atom into an aromatic ring to form a dihydric phenol or quinone; (ii) attacking carbon to carbon double bonds to form carbonyl compounds, and (iii) oxidizing alcohols and carbonyl groups to form carboxylic acids. The ring compound intermediates (dihydric phenols and quinones) were formed under conditions near the stoichiometric ratio of phenol and oxygen, increasing in quantity when oxygen was in deficiency. The unsaturated acids, namely maleic and acrylic and saturated ones, namely formic, acetic, and oxalic appear independently of phenol to oxygen ratio used. Malonic, propionic, and succinic acids were identified only in case of a deficit of oxygen. Malonic acid undergoes decarboxylation to produce acetic acid and carbon dioxide.
Another interesting research was done about the kinetics of oxidation of phenol, and nine substituted phenols were investigated . The process was studied in a 1 L stainless steel autoclave at temperatures in the range of 150°C-180°C and the initial phenol concentration was 200 mg/L. The oxidation reaction found to be the first order for oxygen and also first order with respect to phenolic substrates in both cases. The overall oxidation reaction rate was found to be kinetically controlled when the temperature was less than 195°C and the phenol concentration was less than 200 mg/L. At higher temperatures (>240°C) and higher phenol concentration (>20000 mg/L) the overall oxidation reaction rate became mass transfer controlled.
2.2. Catalytic Wet Air Oxidation (CWAO)
In the 80s significant need was revealed toward the treatment of highly concentrated wastewaters of chemical and pharmaceutical production, as well as residual sludge [22, 23]. Aside from WAO, CW(A)O has been applied to many different model effluents, but relatively few works have been devoted to real and complex industrial wastes [2, 24-28].
In order to carry out wet oxidation under milder conditions (at lower temperature and pressure) an alternative way would be catalytic wet (air) oxidation (CW[A]O). Soluble transition metal salts (such as copper and iron salts) have been found to give significant enhancement of the reaction rate, but post-treatment is needed to separate and recycle them. Heterogeneous catalysts have the advantage that they can be used without the problem of separation and for continuous operation. Mixtures of metal oxides of Cu, Zn, Co, Mn, and Bi are reported to exhibit good activity, but leaching of these catalysts was detected [25, 29-32]
The reaction mechanism of CWAO is thought to be similar to the mechanism of WAO, and the function of the catalyst is essential promoting the formation of free radicals.
A kinetic study was carried out on the phenol oxidation by CWAO using aqueous copper nitrate as a homogeneous catalyst. A kinetic model has been established based on the free radical mechanism where the electron transfer from copper to phenol was assumed to initiate the formation of free radicals and this led to propose that the formation of free radicals (PhO⋅ and PhOOO⋅) is primarily due to the electron transfer from metal to phenol. In this model, the reaction orders were found to be approximately 1.0, 0.5, and 0.5 with respect to phenol, oxygen, and copper concentrations, respectively. In order to verify the proposed kinetics, a series of CWAO experimental tests were done at 313-333 K, oxygen partial pressures of 0.6-1.9 MPa, and copper concentrations 0-13 mg L−1. The experimental data fitted well with the model .
With supported copper oxide catalyst in the temperature range of 120°C-160°C, with 0.6 MPa and 1.2 MPa oxygen pressures, it was found that the reaction was first order with respect to phenol concentration and half order with respect to oxygen partial pressure .
The composition of the most active heterogeneous catalysts in wet oxidation, namely that they are multicomponent, alludes on the validity of the Mars-van Krevelen mechanism well known in catalytic oxidation chemistry [35, 36].
2.2.1. Industrial homogenous CWAO processes
In these processes, homogeneous transition metal catalysts are used that need, however, to be separated and then recycled to the reactor or discarded.
The first process to be mentioned was developed by Ciba-Geigy, which uses a copper salt as a catalyst. From the oxidized material the catalyst has to be separated as copper sulfide and recycled into the reactor, which is titanium lined. The unit works at 300°C and pressure above 100 bar. Three units that are installed in Germany and Switzerland have achieved high oxidation efficiencies (95%-99%) on chemical and pharmaceutical wastes at elevated temperatures.
The other one is the LOPROX process, a relatively low-temperature and low-pressure wet oxidation that was developed by Bayer AG for the treatment of organic substances, especially aromatic compounds, which degrade too slow in normal biological plants or adversely affect the degradation of other substances. The disposal of aromatics is important for two reasons, they are forming a significant portion of PWWs from the chemical industry. They are present in the clarified activated sludge also, which contains humic acids, these have aromatic part with chlorine substituents. It takes place in the presence of oxygen in acidic range in a multi-stage bubble column reactor under relatively mild operating conditions (temperature below 200°C, pressure 0.5-2.0 MPa) the catalyst is the combination of Fe2+ ions and quinone-generating substances. The residence time is 1-3 hours. Above COD value of 6-8 g/L the process is autothermal, no heat energy input is needed. A critical issue is the choice of structural materials of the reactor and of other hot parts of the system. Enameled or PTFE lined steel can be used up to 160°C, titanium and titanium-palladium alloys are applied up to 200°C because of the acidic pH. Several LOPROX plants are in operation at Bayer AG. They dispose of PWWs from intermediate, dyestuff, pharmaceutical, paper, and pulp production, and clarified sludge.
Veolia developed the ATHOS® process for the treatment of clarified sludge at WWTPs. It works with Cu ion catalysis at 250°C and 50-60 bar pressure with pure oxygen. The reactor is perfectly mixed because it has a circulation loop, not the usual bubble column. The heat exchangers are working with extremely high-temperature water as a heating source. Such a plant is working at the Brussels WWTP, in a complex line for the abatement of clarified sludge .
2.2.2. Industrial heterogeneous CWAO processes
The development of stable and active heterogeneous catalysts for WO of PWWs is a difficult task, as the substrates to be oxidized are diverse, the wastes are multicomponent, and severe conditions are needed for the completion of the reactions. At high-temperature and high-oxygen partial pressure even at the basic pH of the reaction mixture the leaching of the active component(s) of the catalyst into the water solution frequently occurs. As mentioned in a review, there are two catalytic WAO technologies that have been developed in the late ‘80s in Japan. Both processes use heterogeneous catalysts, precious metals deposited on titania-zirconia carriers. They are able to oxidize two refractory compounds namely acetic acid and ammonia also .
The NS-LC process uses a Pt-Pd/TiO2-ZrO2 honeycomb catalyst. Typical operating conditions are 220°C and 4 MPa pressure with space velocity = 2 hour-1, which with these operating conditions the oxidation of compounds such as phenol, formaldehyde, acetic acid, glucose, etc., exceeds 99% conversion. In the absence of a catalyst, the removal efficiency would go down to 5%-50% . The specialty of the reactor is the segmented gas-liquid flow, which means that the liquid plugs are sandwiched between two gas plugs, and the flow has a mass transfer increasing and solid deposition preventing effect.
The other process, which is called Osaka Gas, is based on a mixture of precious and base metals on titania or titania-zirconia carriers in a form of honeycomb or sphere. This process has been applied in several industrial and urban wastes. A typical pilot plant at British Gas’s London Research station works at 250°C and pressure of 9 MPa, with 200 L/h feed of waste .
Kurita Company developed a process to abate ammonia with the oxidation agent nitrite in the presence of a supported Pt catalyst. The reaction temperature (170°C) is lower than in the usual WO.
One of the recent developments is the CALIPHOX process made by the National Institute of Chemistry of Slovenia and an engineering firm for the treatment of industrial wastewaters with a metal oxide catalyst in the extruded form in a trickle-bed reactor. It is operating in relatively mild conditions (180°C, 4 MPa). The catalyst is based on the work of Pintar and Levec  who studied CuO- ZnO-Al2O3.
2.2.3. Types of CWAO catalysts
The objective of catalyst application, beside reaction rate enhancement, is to operate among milder conditions. The catalyst is usually a metal salt, a metal oxide, or the metal itself [Table 2.]. As we know, heterogeneous catalysts based on precious metals deposited on stable supports are less sensitive to leaching [25, 31, 41-44]. Different catalysts were applied and their effects were investigated on different catalytic wet oxidation processes in the past years. Pt and Ru on ceria and zirconia-ceria supports were tested in the oxidation of acetic acid that was accompanied by the loss of activity . In the following paper, the same authors described the reason for the deactivation of the Pt catalyst, the accumulation of carbonate species on the surface . Recently, the activity of Ru-oxide on different oxide supports in acetic acid oxidation was reported. The mixed Zr, Ce oxide supported catalyst proved to be the most active .
|Substrate||Reaction condition||Oxidant, catalyst||Reactor type||Removal||Reference|
|Air, Cu||trickle bed reactor||<90%COD||Fortuny et al.1999|
|Phenol, acetic acid||170-200°C
20 bar (O2)
|O2, Ru, Pt, Rh||batch||<97%COD||Duprez et al.
30 bar (total)
|O2, CuO, Zn, Co oxides||trickle bed reactor||>95%TOC||Pintar&Levec1994|
|batch||100% X||Akyurtlu et al.1998|
|O2,Pt, Pd,Ru||slurry||<98% TOC||Qin et al., 2001|
|Ammonia||110°C-130°C||O2, Pt/SDB||trickle bed reactor||100% X||Huang et al., 2001|
0-1 bar (O2)
|O2, AC||packed bed reactor||50%||Pereira, et al, 2000|
20 bar O2
|O2, Ru/CeO2||batch||100% X||Oliviero et al., 2003|
5 bar (O2)
|batch||>84% TOC||Akolekar et al., 2002|
|Air, Pt/Al2O3||batch||100% X||Lee & Kim, 2000|
|Kraft bleach plant effluent||190°C
8 bar (O2)
|Air, Ru/TiO2||trickle bed reactor||< 90%TOC||Pintar et al., 2001|
220.127.116.11. The supported noble metal catalyst
Various noble metals (Ru, Pt, Rh, Ir, and Pd) and some metal oxides (Cu, Mn, Co, Cr, V, Ti, Bi, and Zn) have traditionally been used as heterogeneous catalysts in CWAO. Several studies have ranked catalysts according to their activity. Imamura and his colleagues ranked noble metal and metal oxide catalysts according to their total organic carbon conversion achieved in 1 h, during the oxidation of polyethylene glycol at 200°C and pH of 5.4 . They found the following order: Ru = Rh = Pt > Ir > Pd > MnO.
18.104.22.168. Supported metal oxides
Metal oxides can be classified according to their physical-chemical properties. One of these properties is the stability of metal oxide. Metals with unstable high oxidation state oxides, such as Pt, Pd, Ru, Au, and Ag do not perform stable bulk oxides at moderate temperatures. Most of the commonly used metal oxide catalysts (Ti, V, Cr, Mn, Zn, and Al) have stable high oxidation state oxides. Fe, Co, Ni, and Pb belong to the group with intermediate stability of high oxidation state oxides .
Mixtures of metal oxides frequently exhibit greater activity than the single oxide. Cobalt, copper, or nickel oxide in combination with the following oxides of iron (III), platinum, palladium, or ruthenium, are reported as effective oxidation catalysts above 100°C . In addition, combining two or more metal catalysts may improve non-selective catalytic activity.
Metal oxides are usually applied in the form of powders and fine particles, and with this form of catalyst structure we can achieve maximum specific surface area, but the dispersion of the particles can create an unsteady state. To keep the stable state of the catalyst, at the same time not losing the active phase, some porous supports can be used. Commonly, alumina and zeolites are used as support, but the surface area of aluminum oxide is limited and the pore size of zeolites cannot be permeable for large size organic molecules.
22.214.171.124. Activated carbon catalysts for CWAO
Another promising catalyst could be activated carbon (AC) that shows good properties as an adsorbent for both organic materials and oxygen because of its porous structure and high surface area [60, 61]. Activated carbon is stable in highly acidic and basic media and it is also easy to prepare, which is why it is used as a catalyst for different reactions , and also as a support for other oxidation catalysts [63, 64].
Activated carbon can also catalyze the polymerization reactions in the presence of oxygen via an oxidative coupling. Phenol oxidation over activated carbon in the trickle bed reactor has been investigated [65, 66]. The activated carbon was found less active than metal oxide catalysts but more stable and more environmentally accepted, and of course cost-effective [65, 66].
Phenol conversion was compared using the copper catalyst and activated carbon . In the long run, the copper catalyst was found to lose its activity due to the leaching of the copper phase. On the other hand, activated carbon also exhibited a continuous drop in phenol conversion, starting from nearly complete and finally reaching about 48%. However, the loss of activated carbon efficiency could be ascribed to its consumption during experiments; thus, the absolute activity of activated carbon remained stable during the long term.
One of the recent studies was about the CWAO of paracetamol on activated carbon . The CWAO of paracetamol was investigated both as a water treatment technique and as a regenerative treatment of the carbon after adsorption in a sequential fixed bed process. They used three ACs as catalysts: a microporous basic AC and meso- and micro-porous acidic ACs. During the first CWAO experiment, they noticed that the adsorption capacity and catalytic performance of fresh basic activated carbons (S23 and C1) were higher than those of the fresh microporous acidic one (L27) despite its higher surface area. It seems that this situation changed after reuse, as finally, L27 gave the best results after five CWAO cycles. Respirometric tests were also done with activated sludge and it was mentioned that in the studied conditions the use of CWAO enhanced the aerobic biodegradability of the effluent. The group also checked the different aging by measuring the physicochemical properties of activated carbons.
2.2.4. Application of CWAO in the fine chemical industry
CWAO has been applied to many different model effluents, but relatively few studies have been devoted to real and complex industrial wastes [23, 27-28, 69-73]. Even in literature, there is very limited number of works that dealt with real complex wastewaters. Our focus here is the pharmaceutical industry that produces mixtures of liquid wastes containing water and organic solvents, aside from higher molecular weight organic and inorganic compounds with different concentrations and different pH. Treating these wastewaters needs special conditions.
In a publication, the catalytic wet oxidation of wastewater originating from apramycin production was investigated with supported Ru oxide catalysts . Ru catalyzed oxidation of wastewaters originating from meat processing and vegetable processing industries were also carried out . Three rather detailed reviews were published concerning wet oxidation and catalytic wet oxidation [60, 74, 75]. They also mentioned the oxidation of miscellaneous organic compounds but published no data specifically about the oxidation of pharmaceutical PWWs.
In another research, the effect of CuO/Al2O3 was investigated—which was prepared by consecutive impregnation—on three different azo dyes (Methyl Orange, Direct Brown, and Direct Green), which were treated by CWAO. The relationships of decolorization extent, COD, and total organic carbon (TOC) removal in the dye solution were also investigated. The 99% of color and 70% of TOC removal in 2 h indicated that the CuO/Al2O3 catalyst had excellent catalytic activity in treating azo dyes . In Table 3, the most characteristic results of CWAO are collected; the substrates tested are in most cases phenol and acetic acid. The latter is resistant in WO, but easily biodegradable in the biological denitrification.
|Sandra et. al. 1974
Kim et al. 1991
Mishra et. al. 1993
|chlorophenols||Sanger et. al. 1992|
|Cu-Zn-Al oxide||Alumina||phenol compounds||Pintar et al. 1992|
|Cu-Mg-La||Zn aluminate||acetic acid||Box et.al. 1974,
Levec et. al. 1976
|Sandra et. al. 1974
Sanger et. al. 1992
|Mn-Ce||None||polyethylene-glycol||Imamura et al.1986|
|Mn-Zn-Cr||None||industrial wastes||Moses et al. 1954|
|Cu-Co-Ti-Al||Cement||phenol||Schmidt et. al. 1990|
|Co||None||alcohols, amines, etc.||Ito et. al. 1989|
|Co-Bi||None||acetic acid||Imamura et. al.1982|
|Co-Ce||None||ammonia||Imamura et. al. 1985|
|Fe||Silica||chlorophenols||Sanger et. al. 1992|
|Ru||Cerium oxide||alcohols, phenols, etc||Imamura et. al. 1988|
|Ru-Rh||Alumina||wet oxidized sludge||Takahasi et. al. 1991|
|Pt-Pd||Titania-zirconia||industrial wastes||Ishii et. al. 1991|
|Ru||Titania-zirconia||industrial wastes sludge||Harada et. al. 1993|
|Pt||Alumina||phenol||Hamoudi et. al. 1998|
|Mn||Cerium oxide||phenol||Hamoudi et. al. 1998|
|Ru||Titania||phenol||Vaidya et. al. 2002|
|Pt, Ru||Carbon black composite Silica-titania||phenol||Cybulski et. al. 2004|
|Ru||Pelletized cerium oxide Zirconia||phenol||Wang et al. 2008|
Titania-cerium oxide Zirconia-cerium oxide
|acetic acid||Wang et. al. 2008|
|Pt, Ru||Cerium oxide, Zr-(Ce-Pr)-O2||phenol||Keav et. al. 2010|
|Ru, Ru-Ce||Alumina||isopropyl alcohol
|Yu et. al. 2011|
|Graphene oxide (GO)||None||phenol||Yang et. al. 2014|
|acetic acid||Lafaye et. al. 2015|
|phenol||Espinosa de los Monteros et. al. 2015|

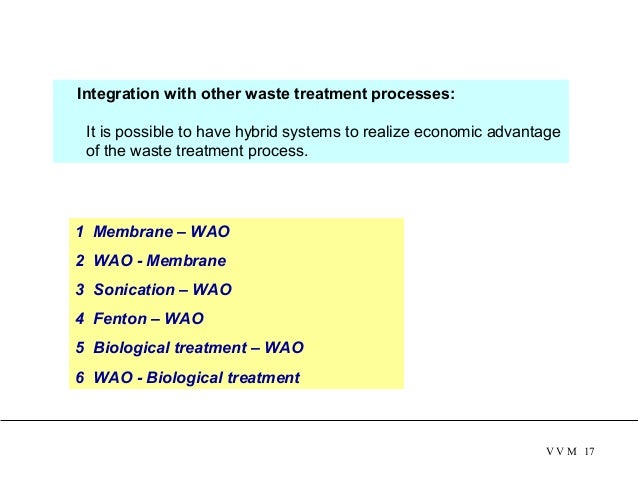

2.3. Intensification of WAO with combined technologies; effect of high energy radiation on wet oxidation at elevated temperature (the combination of the two methods)
As it is indicated in the previous section, one of the new areas in treating liquid wastes of high-organic content generated by the fine chemical mainly the pharmaceutical industry is the combination of AOPs with WAO. This area of work is rather new and there are very few articles dealing with this area of research.
We already know that the organic compounds undergo chain type oxidation in a reactor at high temperature and high pressure, of course sometimes in the presence of a catalyst. The high temperature is needed for the initiation of oxidation processes, but at the same time, this high temperature and pressure could cause serious corrosion even at alkaline pH, so it could be a good idea to decrease the temperature yet induce the chain initiation of oxidation by radiation. For this reason, WO and irradiation could be combined.
For radiation processing of polluted water, high-energy electron beam, γ -rays, or x-rays can be principally used. For producing the electron beam, electron accelerator devices are far the best radiation sources with respect to their output power and practical applicability.
2.3.1. Water radiolysis
In the interaction between ionizing radiation (high-energy electron beam, gamma rays) and water, electronically excited and ionized molecules are formed and the product of it will be primary species such as ⋅OH, e–aq, H⋅, and molecular products such as H2, H2O2. In the presence of oxygen in the water, the reducing species H-atoms and the solvated electrons (e–eq) are converted into oxidizing species, perhydroxy radicals (HO2⋅), and perhydroxyde radical anions (HO2⋅). The last one together with the OH⋅ radicals are responsible for the degradation of water pollutants.
The radiation-induced degradation of neutral phenol solution was studied in the past using end-product techniques [101-105]. There are other few works on mechanistic studies on phenol and other aromatic molecules that were carried out by combining end products and transient detections and it was suggested that the transformations were initiated by hydroxyl radical attachment to the ring and reaction of O2 with the radicals produced [106-108].
Pulse radiolysis of 2,6-dichloroaniline in dilute aqueous solution was investigated. It is known that mono- and dichloroanilines are considered to be highly hazardous pollutants in wastewater. These compounds are important chemical intermediates of dye and plant protection agent production. In this investigation, the hydroxyl radical formed in water radiolysis was reacted with 2,6-dichloroanliline forming hydroxy-cyclohexadienyl derivative. The irradiation was carried out at room temperature by a 60Co γ-source, built into a panorama irradiator, with 1.5 kGy h-1 dose rate. The hydroxy-cyclohexadienyl radical in the absence of dissolved O2 partly transformed to aniline radical when oxygen was present in the reaction mixture the radical transformed to peroxy radical. According to chemical oxygen demand measurements, the reaction of one OH⋅ radical-induced the incorporation of 0.6 O2 into the products .
The irradiation-induced decolorization and degradation of aqueous solutions of azo dyes and some intermediates (anilines, phenols, triazines) were successful with electron beam irradiation. The experimental methods were the pulse radiolysis and end-product analysis with HPLC-MS. Demonstrating the practical applicability of this method, a continuous irradiation device has been built. The feed was the dye-containing water of red color; the effluent was the colorless liquid during contact time of less than 0.1 seconds with the high energy electron beam (4 MeV) generated by a linear electron accelerator .
The other topic is the investigation of the degradation of pharmaceuticals that can be detected in natural waters as emergent pollutants. The radiation-induced degradation of ketoprofen in dilute aqueous solution has been tested. The intermediates and final products of ketoprofen degradation were determined in 0.4 mmol/dm3 solution by pulse radiolysis and gamma radiolysis. UV-Vis spectrophotometry and HPLC separation served for identifying the product compounds .
The successful degradation of organic molecules being in small concentration in waters, with high-energy irradiation generating radicals already at room temperature prompted us to combine this method with WO. Recently, this hybrid method was used and compared with the classical WO method. The noticeable conversion was observed in phenol oxidation by irradiation already at room temperature in the presence of a high concentration of dissolved oxygen .
In one of the recent studies, WAO of highly concentrated emulsified wastewater was conducted. These kinds of wastewater usually contain all kinds of organic matters such as surfactants, additives, and mineral oils. They are typical, highly concentrated hardly biodegradable organic wastewaters. This oxidation took place in a 2 L high-pressure autoclave in batch mode. The initial COD concentration of the wastewater was 48000 mg/L. After 2 h of oxidation at 220°C with supply of oxygen 1.25 times more than its theoretical value, the COD was reduced by 86.4%. The temperature seemed to be a key influential factor, especially between 180°C and 220°C the COD and TOC removal was evidently increased. They also recognized that with increasing the initial partial pressure of oxygen (pO2), the reaction rate significantly increased
